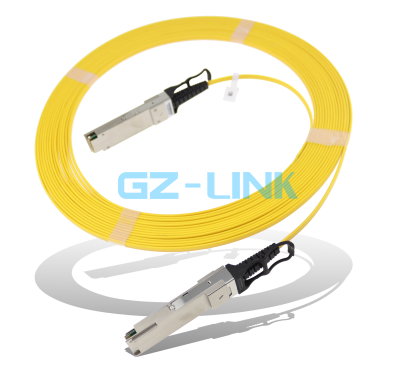

40G QSFP+ Active Optical Cable
- 型号 : GQS-40AOC-XXX
- 40G QSFP+ Active Optical Cable
-
QSFP active optic cables are a high performance, low power consumption, long reach interconnect solution supporting 40G Ethernet, fiber channel and PCIe. It is compliant with the QSFP MSA and IEEE P802.3ba 40GBASE-SR4.
Sourcelight QSFP active optic cables is an assembly of 4 full-duplex lanes, where each lane is capable of transmitting data at rates up to 10Gb/s, providing an aggregated rate of 40Gb/s.
- Full duplex 4CH 850nm parallel active optical cable
- Transmission data rate up to 10.3Gbit/s per channel
- SFF-8436 QSFP+ compliant
- Hot pluggable electrical interface
- Differential AC-coupled high speed data interface
- 4 channels 850nm VCSEL array
- 4 channels PIN photo detector array
- Maximum link length of 300m on OM3 Multimode Fiber (MMF)and 400m on OM4 MMF
- Low power consumption <1.5W
- Operating case temperature 0°C to +70°C
- 3.3V power supply voltage
- RoHS 6 compliant
| Package (Form Factor) | QSFP+ Active Optical Cable |
| Data Rate (typical) | 10.3 Gbps/CH |
| Distance | 300m on OM3 MMF |
| Transmitter | 4CH VCSEL Array Laser |
| Receiver | 4CH PIN photo detector Array |
| TX Output Power (dBm) | -7.5~+2.5 |
| RX Sensitivity (dBm) | -5.4 |
| Low/High Case Temperature | 0°C~70°C |
| Voltage Supply (typical) | 3.3v |
| Connector | QSFP+ |
- Infiniband transmission at 4ch SDR, DDR and QDR
- 40GBASE-SR4 40G Ethernet
- Data Centers
