GZ-Link 100G Optical Transceiver QSFP28 CFP2 are hot-pluggable transceivers that support a wide range of 40 and 100 Gb/s applications such as 40G and 100G Ethernet, OC-768/STM-256, OTU3, and OTU4;
The module form factor provides the highest density and lowest power dissipation among all standardized pluggable form factors today, specifically targeting short multimode links. Both transceiver modules.
Model | Package | Data Rate | Wavelength | Connector | Distance | Operating | DDMI | Type |
GCF2-100G-SR10 | CFP2 | 100G | 850nm | MTP/MPO | 400m | 0-70 | YES | MMF |

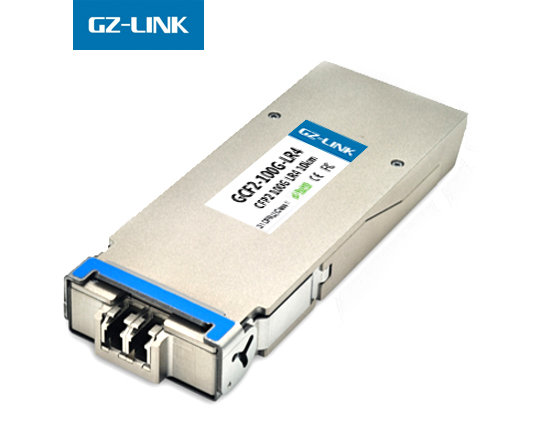

GCF2-100G-LR4 | CFP2 | 100G | 1310nm | Duplex LC | 10km | 0-70 | YES | SMF |
GCF2-100G-ER4 | CFP2 | 100G | 1310nm | Duplex LC | 40km | 0-70 | YES | SMF |
G-CFP2-QSFP28 | CFP2 QSFP28 | 100G | NO | QSFP28 | NO | 0-70 | YES | NO |
GQS28-100G-SR4 | QSFP28 | 100G | 850nm | MTP/MPO | 100m | 0-70 | YES | MMF |

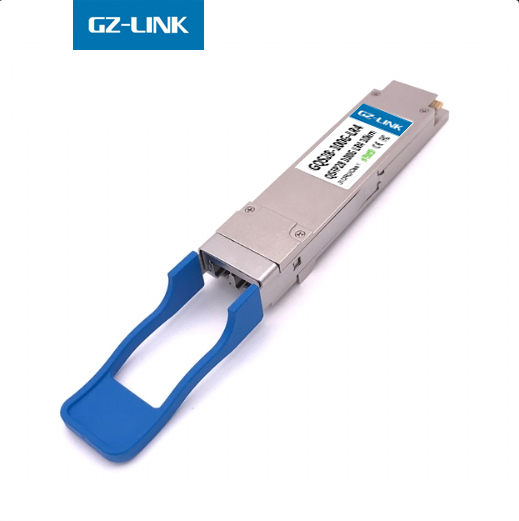

GQS28-100G-LR4 | QSP28 | 100G | 1310nm | Duplex LC | 10km | 0-70 | YES | SMF |
GQS28-100G-LR4R | QSFP28 | 100G | Receiver | Duplex LC | 10km | 0-70 | YES | SMF |
GQS28-100G-PSM4 | QSFP28 | 100G | 1310nm | MTP/MPO | 2km | 0-70 | YES | SMF |
GQS28-100G-CWDM4 | QSFP28 | 100G | 1295~1309nm | Duplex LC | 2km | 0-70 | YES | SMF |
GQS28-100G-ER | QSFP28 | 100G | 1310nm | Duplex LC | 40km | 0-70 | YES | SMF |
