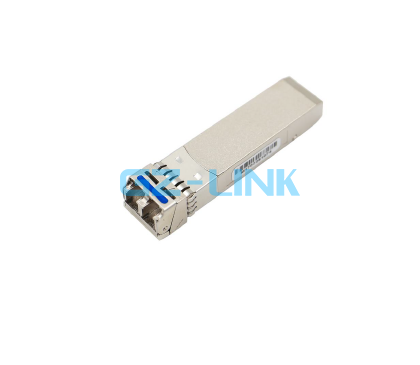

GS-16G55-ER - 16G SFP ER

16G SFP+ 1550NM 40KM DDM

型号 : GS-16G55-ER
16G SFP+ 1550NM 40KM DDM
The 16G SFP+ transceivers are high performance, cost effective modules supporting data rate of 14.025Gbps and 40km transmission distance with SMF.

The transceiver consists of three sections: a Cooled EML laser transmitter, a PIN photodiode integrated with a trans-impedance preamplifier (TIA) and MCU control unit. All modules satisfy class I laser safety requirements.
The transceivers are compatible with SFP Multi-Source Agreement and SFF-8472 digital diagnostics functions.

Supports up to 14.025Gbps bit rates

Hot-pluggable SFP+ footprint

1550nm Cooled EML laser and PIN photodiode, Up to 40km for SMF transmission

Compliant with SFP+ MSA and SFF-8472 with duplex LC receptacle

Compatible with RoHS

Single +3.3V power supply

Real Time Digital Diagnostic Monitoring

Operating case temperature:Standard: 0 to +70°C
