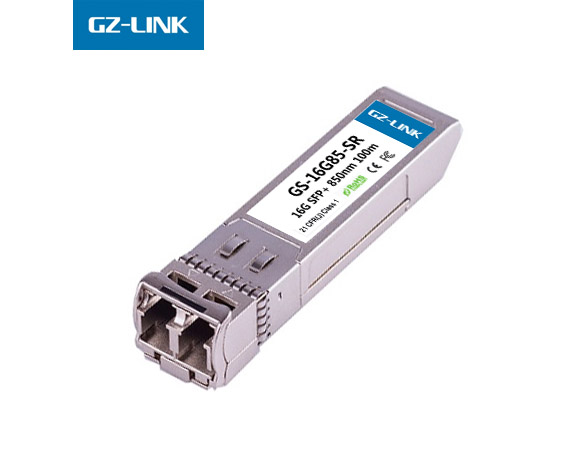

Up to 14.025Gb/s bi-directional data linksElectrical interface specifications per SFF-8431Management interface specifications per SFF-8432 and SFF-8472Build-in Dual CDR at 14.025Gb/s and bypass at 4.25Gb/s and 8.5Gb/sSFP+ MSA package with duplex LC connectorUncooled 850nm VCSEL Laser35m on 50/125um MMF100m on high-bandwidth 50/125um(OM3) MMFSingle +3.3V power supplyClass 1 laser safety certifiedMetal enclosure, for lower EMIOperating case temperature: 0 to 70 °CRoHS Compliant
Package (Form Factor) | SFP+ |
Data Rate (typical) | 14.025 Gb/s |
Centre Wavelength | 850nm |
Distance | 100m OM3 MMF |
Diagnostics | Digital Monitor |
Transmitter | VCSEL Laser |
Receiver | PIN photo detector |
TX Output Power (dBm) | -6.0~-1.2 |
RX Sensitivity (dBm) | -10.5 |
Low/High Case Temperature | 0°C~70°C |
Voltage Supply (typical) | 3.3v |
Connector | Duplex LC/UPC |
Tri Rate 4.25 / 8.5 / 14.025 Gb/s Fibre Channel Rate
